Premium radiant heating panels for walls and ceilings — five models, multiple finishes and sizes. ETL listed for the United States and Canada. Solid-state, no moving parts.
WarmWallz is Heatizon’s line of electric radiant heating panels for walls and ceilings, designed to provide efficient, even heat across residential and commercial spaces. WarmWallz panels transfer heat primarily through radiant energy: approximately 85% of the radiant energy emitted is absorbed directly by surrounding objects — walls, furniture, and floors — warming them, while the remainder transfers to the surrounding air by convection. The result is comfortable, draft-free heating without the air movement and temperature stratification typical of forced-air systems. WarmWallz is ETL listed for installation in the United States and Canada.
Five models for every space
WarmWallz is available in five model lines, each suited to different finishes, mounting requirements, and applications:
- WarmWallz (Basic) — smooth surface, easy to clean and maintain. Wall or ceiling mountable.
- WarmWallz U — textured coating for improved heat dispersion. Ceiling mountable only.
- WarmWallz U+ — diverse sizes and coating options for differing applications. Wall or ceiling mountable.
- WarmWallz CR — decorative finish and texture for an elegant look. Wall mountable only.
- WarmWallz GS — glass heating surface for a clean, modern aesthetic. Wall or ceiling mountable.
Each model is available in a range of sizes and power outputs to match the heat loss requirements of the space — from supplemental comfort heating to a primary heat source for the room.

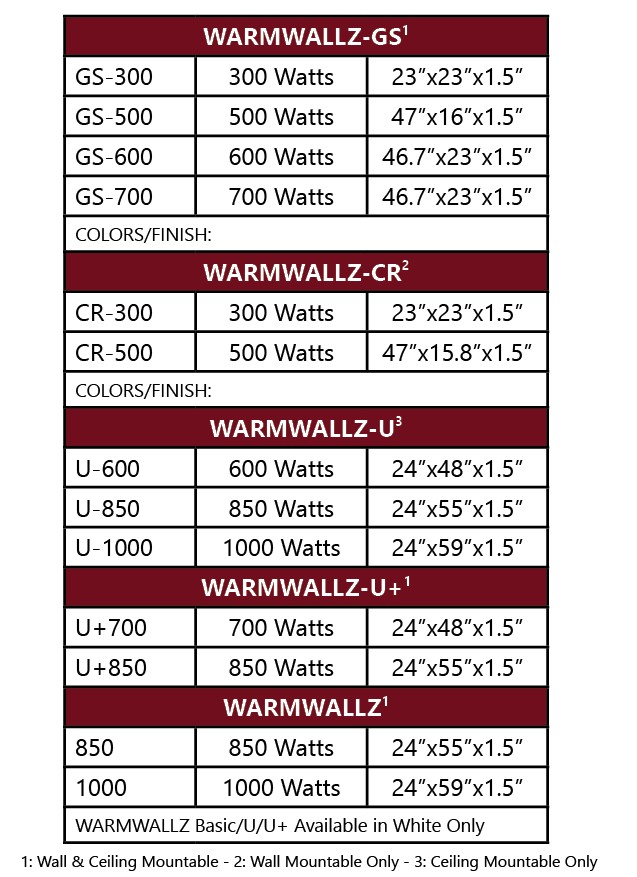

In addition to the finishes and mounting options, Heatizon Systems’ WarmWallz come in a variety of sizes and power options:
How a radiant panel heating works
WarmWallz panels heat a space differently than forced-air systems. Radiant energy emitted from the panel travels through the air largely unabsorbed until it strikes a solid surface — approximately 85% of that energy is absorbed directly by walls, furniture, and floors, raising their surface temperature. The warmed objects then radiate heat into the room and transfer additional heat to the surrounding air by convection. This produces even, comfortable warmth throughout the space without the drafts or temperature stratification common with forced-air heating.
WarmWallz Accessories
Every WarmWallz model includes a wall mount or ceiling bracket. Optional accessories include a towel rail, available on select GS and CR wattages, and wall offset screws, available on all models except the U line. Additional accessories may be available for specific installation conditions — consult a Heatizon distributor for availability
Wall Mount/Ceiling Bracket (All Models)

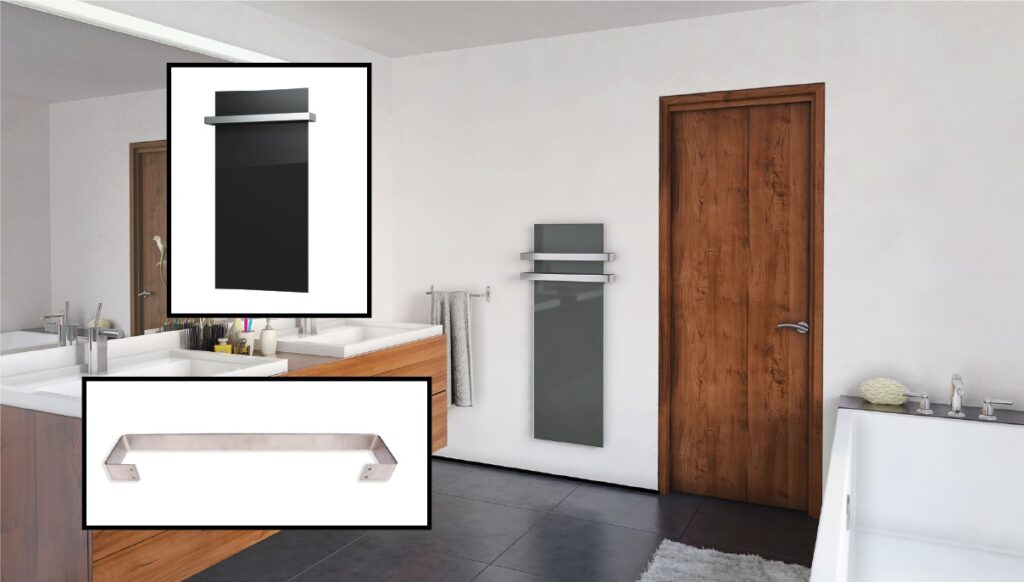

Towel Rail (GS/CR Select Wattages Only)*
*OPTIONAL – INQUIRE ABOUT AVAILABILITY

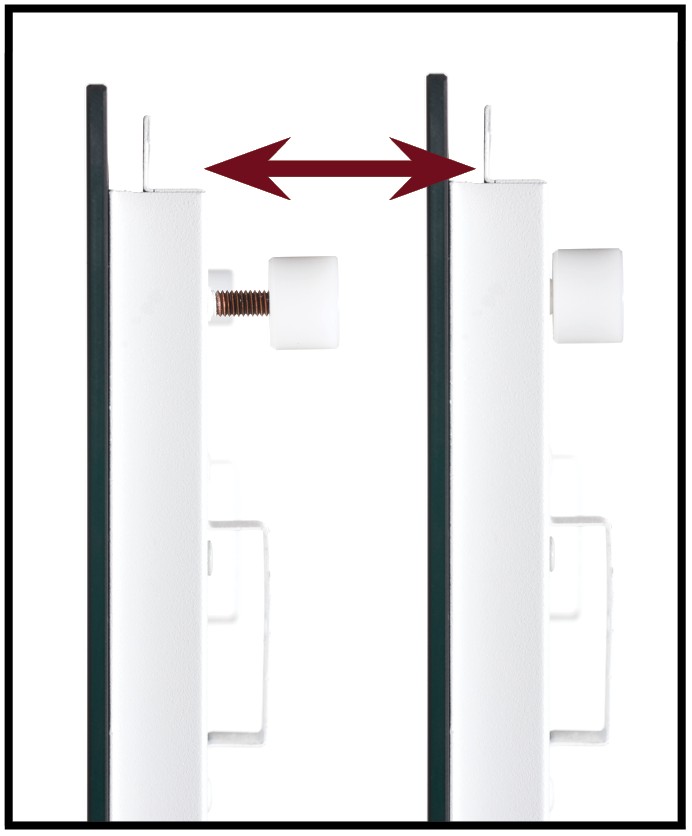

Wall Offset Screws
(Not Offered on U Models)
Other WarmWallz accessories are/may be available for special installation conditions, consult with a distributor or contact Heatizon directly for more information.
Technical specifications
| Models available | Basic, U, U+, CR, GS |
| Voltage | 120V (Plug-in grounded cord) |
| Wattage | 300, 500, 600, 700, 850, 1000 — varies by model |
| Mounting | Wall and/or ceiling — varies by model |
| Heat transfer method | Radiant (~85%) with convective transfer to surrounding air |
| Safety listing | ETL listed — United States and Canada |
| Moving parts | None — fully solid-state |
| Included accessory | Wall mount or ceiling bracket (all models) |
| Optional accessories | Towel rail (select GS/CR), wall offset screws (not on U models), drop ceiling bracket |
| Suitable spaces | Residential and commercial — bathrooms, offices, living spaces |
Premium radiant panels for every space
Heatizon offers premium radiant panels specifically engineered for a variety of spaces and applications — from smooth, easy-clean surfaces for everyday use to decorative ceramic-textured and frameless glass finishes for spaces where appearance matters as much as performance. With five distinct model lines and a range of sizes and wattages, WarmWallz panels can be specified for supplemental comfort heating in a bathroom or as a primary heat source for an entire room.
WarmWallz panels are ETL listed for installation in the United States and Canada — independently certified for safety and performance. The panels are solid-state with no moving parts, requiring no routine maintenance after installation.
WarmWallz is part of Heatizon’s complete radiant heating product line — alongside floor heating, snow melting, and roof deicing systems — giving specifiers and homeowners a single source for radiant comfort throughout a building, from the floor to the walls and ceiling.
Complete the system
For floor heating to pair with WarmWallz wall and ceiling panels, see Heatizon’s floor heating systems using ZMesh, Tuff Cable, or Cozy Heat. For total space heating across an entire room or building, see Heatizon’s radiant space heating options.
Frequently Asked Questions
WarmWallz Space Heating Panels
WarmWallz panels mount to a wall or ceiling using the included wall mount or ceiling bracket, compatible with all models. Installation does not require structural modification — the panel is mounted directly to the wall or ceiling surface and connected to the electrical supply per the model’s wattage and voltage requirements.
Outside of regular cleaning/dusting, yes. WarmWallz panels are solid-state with no moving parts, requiring no routine maintenance or servicing after installation.
WarmWallz panels can serve as either a primary heat source for a room or as supplemental heating alongside an existing system, depending on the panel wattage selected relative to the room’s heat loss. Heatizon offers WarmWallz panels in a range of sizes and power outputs to match different room sizes and heating requirements — see the size and wattage chart for available configurations.
WarmWallz panels include a wall mount or ceiling bracket compatible with all models. Optional accessories include a towel rail, available on select GS and CR wattages, and wall offset screws, available on all models except the U line. Additional accessories may be available for special installation conditions — consult a Heatizon distributor for availability.
The right WarmWallz model depends on three factors: mounting location (wall, ceiling, or both), desired finish (smooth, textured, decorative, or glass), and the heat output required for the space. WarmWallz Basic and U+ offer the most installation flexibility with both wall and ceiling mounting. WarmWallz U is ceiling-only with enhanced heat dispersion. WarmWallz CR is wall-only with a decorative finish. WarmWallz GS offers a glass surface for wall or ceiling installation. Contact a Heatizon distributor to select the right model and size for your specific space and heat loss requirements.

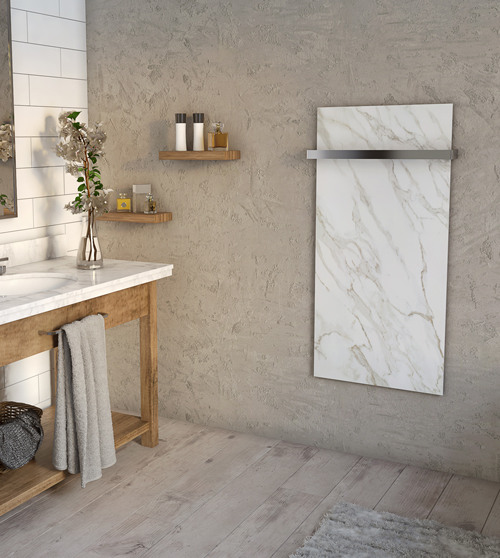

WarmWallz CR is a wall-mountable radiant heating panel with an elegant decorative finish and texture, designed to add radiant heating to a space while complementing the interior design. CR panels are wall mountable only.
WarmWallz GS is a radiant heating panel with a glass heating surface, suitable for both wall and ceiling mounting. The glass surface provides a clean, modern aesthetic alongside the panel’s radiant heating function, making it a common choice for bathrooms and visible living spaces where appearance matters alongside performance.
WarmWallz Basic has a smooth surface that is easy to clean and maintain, and can be mounted on either a wall or ceiling. WarmWallz U has a textured coating designed to improve heat dispersion across the panel surface, but is ceiling mountable only. The choice depends on whether wall mounting flexibility or improved heat dispersion is the priority for the installation.
Heatizon offers five WarmWallz model lines, each suited to different applications and finishes. WarmWallz (Basic) has a smooth, easy-to-clean surface and is wall or ceiling mountable. WarmWallz U has a textured coating for improved heat dispersion and is ceiling mountable only. WarmWallz U+ offers diverse sizes and coating options and is wall or ceiling mountable. WarmWallz CR provides an elegant decorative finish and texture and is wall mountable only. WarmWallz GS features a glass heating surface and is wall or ceiling mountable.
WarmWallz panels can be installed on walls or ceilings, depending on the model selected. Some models are wall or ceiling mountable, while others are designed for one mounting orientation only — see the model comparison for specific mounting compatibility. WarmWallz is suitable for residential and commercial spaces including bathrooms, offices, living spaces, and other interior rooms.
Yes. WarmWallz panels are ETL listed for sale and installation in the United States and Canada.
Radiant panel heating works by emitting infrared radiant energy that travels through the air largely unabsorbed until it strikes a solid object — a wall, piece of furniture, or floor. Approximately 85% of that radiant energy is absorbed by the object, raising its surface temperature directly. The warmed objects then radiate heat into the room and transfer some heat to the surrounding air by convection. This differs from forced-air heating, which heats air directly and relies on air circulation to warm the room.
WarmWallz is Heatizon’s line of premium electric radiant heating panels for walls and ceilings. The panels transfer heat primarily through radiant energy — approximately 85% of the radiant energy emitted is absorbed by surrounding objects (walls, furniture, floors), warming them directly, while the remaining heat transfers to the surrounding air by convection. This provides efficient, even heating without the air movement and temperature stratification of forced-air systems. WarmWallz is ETL listed for sale and installation in the United States and Canada.
WarmWallz Product Documentation:
Coming Soon!
